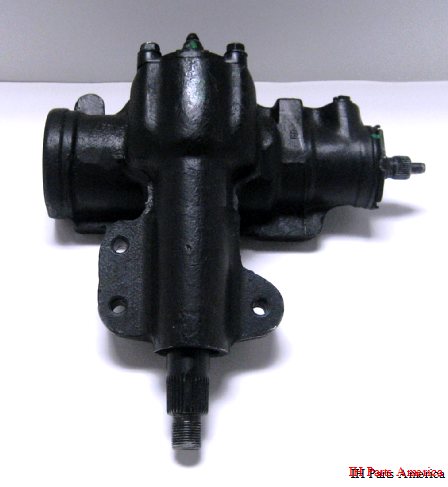

Remanufactured Power Steering box for ALL 1971-80 Scout II,
Terra and Traveler.
Choose input shaft size when ordering. Also available for 1980 Scout w/ o-ring fittings.
How do I determine which input shaft size I have? All Scout II's from 1971 thru mid 1977 came from the factory with a 13/16" input and then from mid 1977 thru 1980 had a 3/4" input. If your steering box was replaced at some point in its life it may have had a change in input size. To best determine which input you have in this scenario use a 11/16" 12 point box end wrench and try to slip it over the input shaft of the steering box(steering box must be removed or ragjoint removed in order to perform this task). If the wrench slips over the input shaft then you have a 3/4" input. If it will NOT go over the input shaft then you have a 13/16" input.
A $600 core charge applies and will be refunded upon the return of a rebuildable core.
Replaces IH part numbers 481582C91 or 500122C91 or 507992C91
WE BUY POWER STEERING BOX CORES!!! IF YOU HAVE AN EXTRA GOOD REBUILDABLE CORE THAT YOU WOULD LIKE TO SELL PLEASE CONTACT US AT 530-274-1795.
